Kegmaster Kegerator Under Bench Font Adapter

This is a simple way to connect the top of the kegerator to the underside of a countertop or bar, then mount your font and tap array to the top of the countertop or bar.

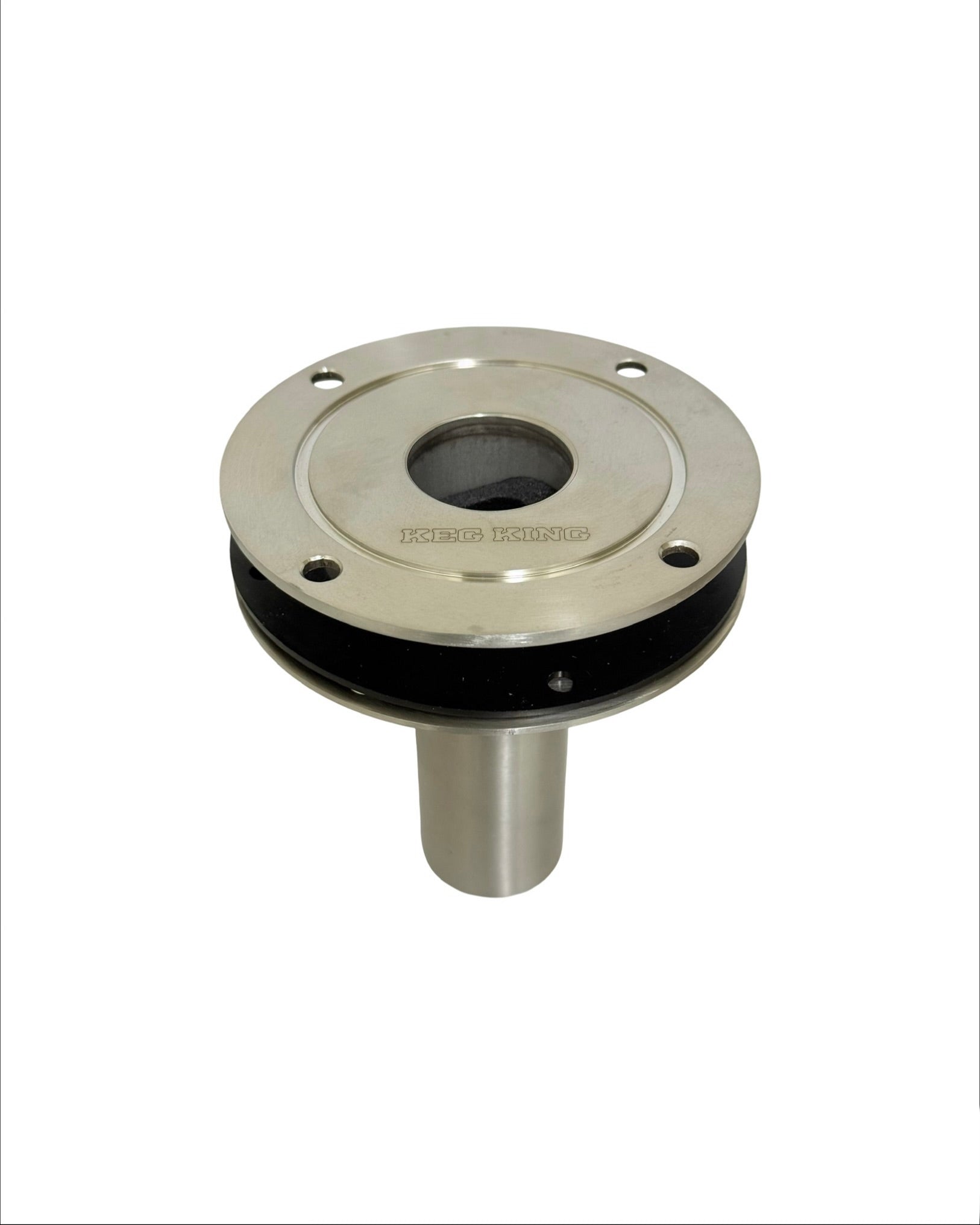

This telescopic stainless steel part will allow the font fan hose to keep the font and lines cold and return the cold air back to the kegerator without leaks.

Simply use the template included on the box to drill your countertop with the appropriate holes: x1 38mm hole for the lines and font fan hose, x4 7mm holes for the screws in the font base.

The top portion of the telescopic adaptor will sit on your counter top with the gasket and font.

The bottom portion will attach to a gasket on your kegerator font port underneath the countertop or bar.

The Keg Master Telescopic Font Adapter will provide you with approx 120mm of clearance between the top of the kegerator and the underside of the countertop if the top plate is mounted on the underside of the bench.

Includes Font Adapter, gasket and all required mounting hardware.

For installation instruction see the video below.
